Solid State Logic SSL UMD192 MADI & Dante 數位音訊介面

192 channels at 48 / 44.1 kHz, 192 channels at 96 / 88.2 kHz, and 128 channels at 192 / 176.4 kHz
USB 3.0 class - compliant interface
Mac OS compatible ; Windows support via SSL driver
6x MADI BNC pairs with redundant mode for 3x dual - redundant MADI connections

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $26499 無限制折 $1699

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $22500 無限制折 $1499

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $18200 無限制折 $1299

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $16500 無限制折 $1099

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $12600 無限制折 $899

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $8990 無限制折 $299

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $10500 無限制折 $699

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $6850 無限制折 $199

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $4650 無限制折 $159

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $3550 無限制折 $99

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜消費滿 $2500 無限制折 $50

至2026-04-27T15:00:00.000+00:00截止指定分類，品牌聯合季｜滿 $1350 享 $20 優惠

全店，2026 38女王節限定 $699 免運

查看更多收起內容

NT$147,300

NT$125,200

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

送貨及付款方式

顧客評價

商品描述

The most powerful MADI & Dante digital audio interface available

Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of high-spec studios, professional live sound, and broadcast environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.

The Perfect Bridge Between USB, MADI and Dante

Built for versatility, the UMD192 supports bidirectional audio between any two formats – MADI, Dante or USB – with the third format able to receive a split feed. This makes it ideal for bridging multiple MADI-connected devices into a Dante network, or for high-channel-count recording and playback via USB 3.0.

On the network side, UMD192 delivers fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support and ultra-low Dante latency down to 0.25 ms. UMD192 provides flexible clocking options from either MADI or Dante, covering sample rates from 44.1 to 192 kHz. With six MADI BNC pairs, the UMD192 can also be configured in redundant mode, enabling three dual-redundant MADI connections for mission-critical broadcast and live workflows.

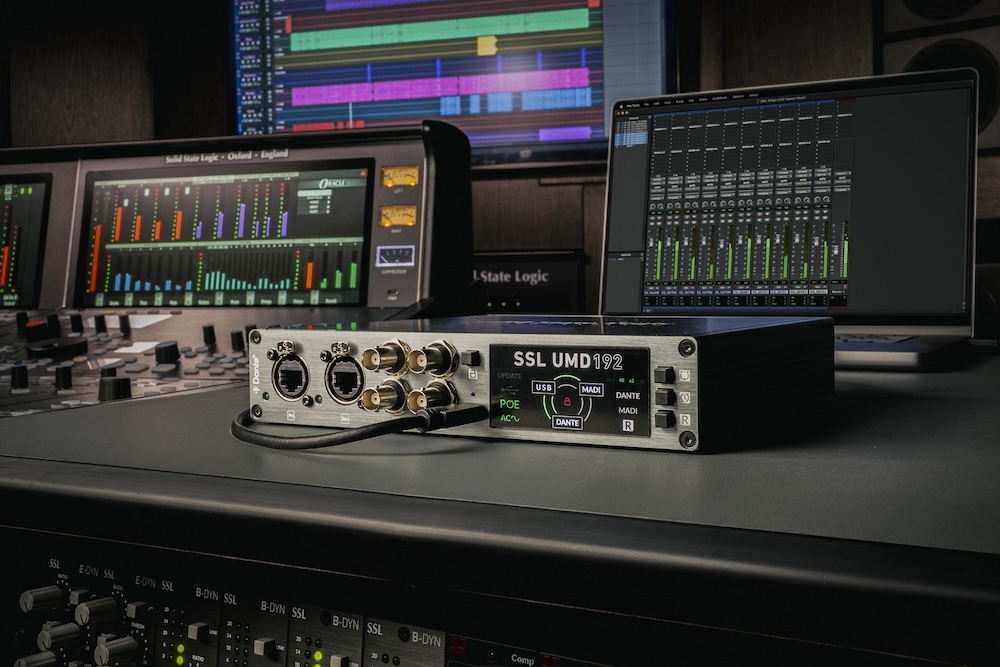

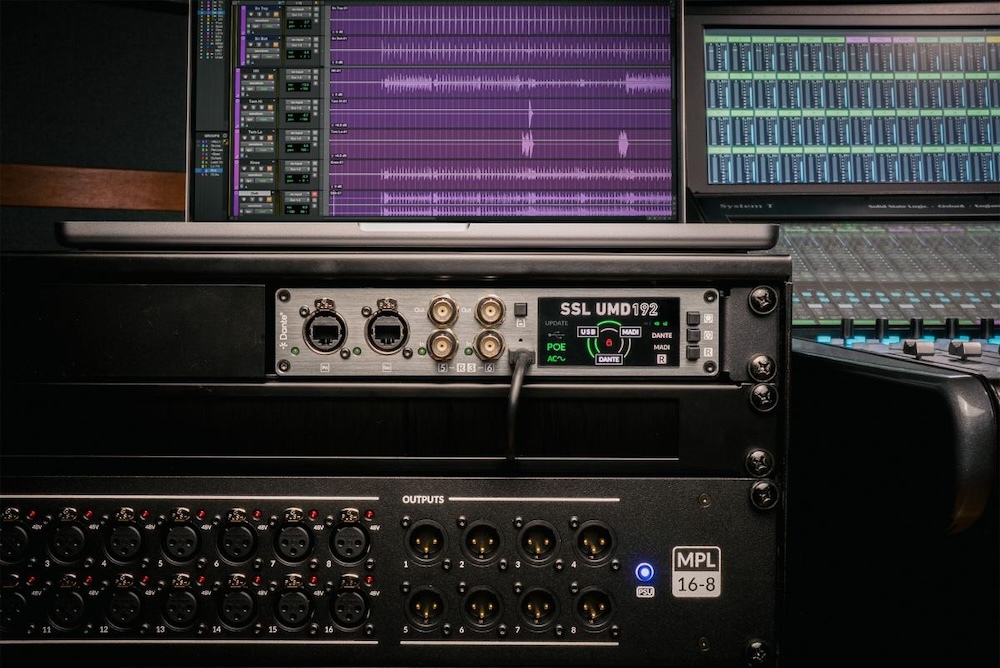

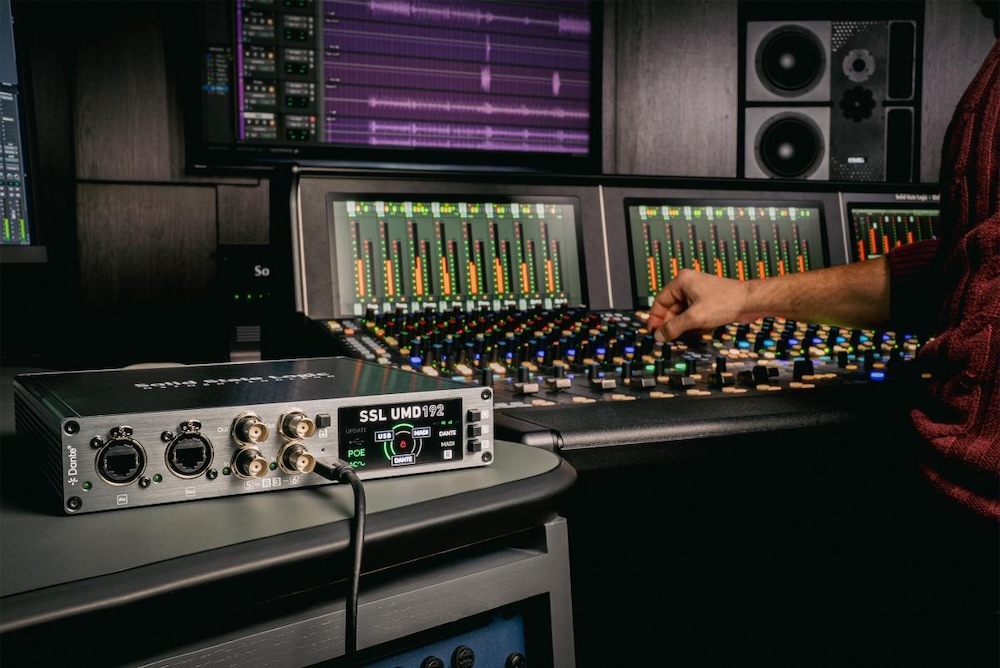

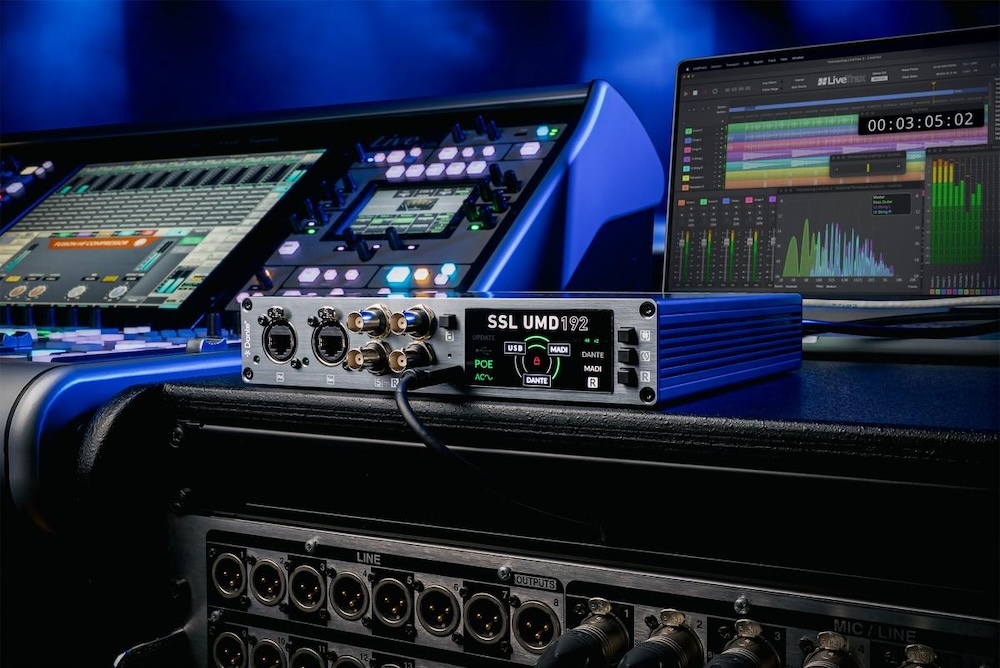

The All-in-One Solution for Studio, Live and Broadcast

The UMD192 is a perfect match for SSL Oracle or ORIGIN installations with Dante or MADI conversion and an ideal computer interface for Harrison 32Classic systems with Dante. The UMD192 is a powerful solution for non-SSL console users in live sound, broadcast, studio and postproduction settings, or any DAW-based studio using Dante or MADI.

With unmatched flexibility and robust connectivity, the UMD192 is the perfect companion for engineers working across live sound, broadcast, postproduction, and studio environments. Whether used as a high-capacity interface or a format bridge, the UMD192 keeps workflows streamlined and future-ready.

Its versatility makes it equally valuable across a wide range of professional audio scenarios. From broadcast music recording and mixing — especially when paired with SSL System T — to high-channel-count studio sessions, the UMD192 delivers seamless integration and robust performance.

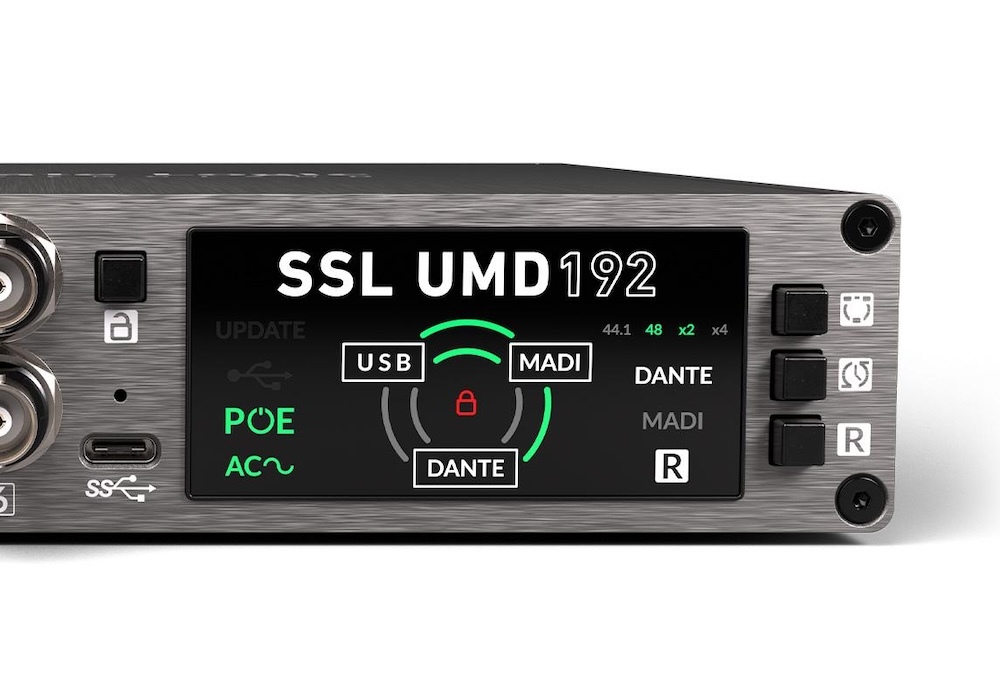

Intuitive Front Panel Control

The UMD192 front panel delivers clear, high‑visibility indicators with real‑time feedback on signal flow, sample‑rate sync, power status, and network connectivity, keeping you in control, even under pressure. UMD192’s front panel controls are locked by default to protect your predefined configuration and prevent accidental changes to settings. Press and hold the padlock button to temporarily unlock the other controls and change modes.

Lockout – Press and hold to unlock other front panel controls. Press and hold until the red lock symbol in the centre of the circle in the indicator panel turns off.

Mode – Press to cycle through the signal flow modes.

Clock Source – Press to toggle between Dante and MADI as clock source.

MADI Redundancy – Press to toggle between MADI Redundancy on or off. Redundant mode applies to all MADI ports.

Flexible Power & Redundancy

The UMD192 supports multiple power sources – AC mains, Power over Ethernet (PoE), and USB – giving engineers flexible deployment options and the ability to build redundancy into their setups. Each power source can be used on its own or in combination for failover. For example, the AC input can be paired with a PoE injector to create a simple redundant power configuration when a PoE switch isn’t available.

Key Features

192 channels at 48 / 44.1 kHz, 192 channels at 96 / 88.2 kHz, and 128 channels at 192 / 176.4 kHz

USB 3.0 class-compliant interface

Mac OS compatible; Windows support via SSL driver

6x MADI BNC pairs with redundant mode for 3x dual-redundant MADI connections

Fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support

Ultra-low Dante latency — as low as 0.25ms

Flexible clocking from MADI or Dante

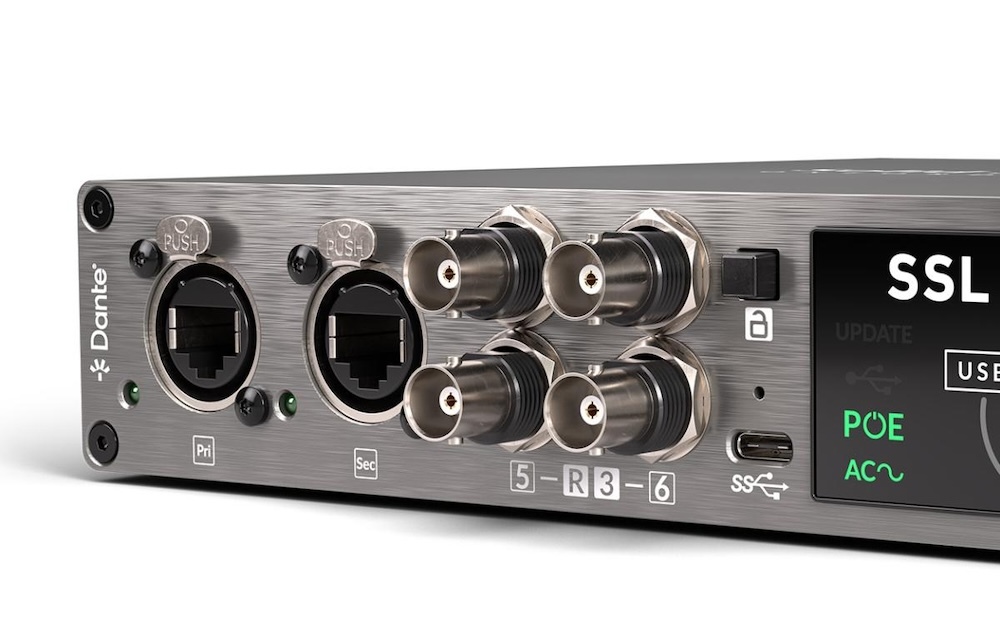

Ruggedised Ethernet ports (2x Primary, 2x Secondary) with Link & Activity LEDs

Clear front-panel indicators for signal flow, sample rate matching, power status, and connectivity

Intuitive front-panel controls, with a lockout feature to prevent accidental changes during operation.

Multiple power options: AC, PoE, or USB — with redundancy support

Lightweight and portable design for desktop, console-side, or rack-mounted use

Included cables: USB-C to C, USB-A to C adapter, IEC power cable

Tech Specs

System Requirements and Specs

Mac OS 12 and above | Class-Compliant, Plug-and-play, Windows 11. Install included ASIO / WDM driver.

Connectivity

USB 3.0 Type C Connector (Box includes Type C to C and Type C to A).

Clocking

Can either be clocked from the Dante / AoIP network or clocking from the incoming MADI stream on port 1. When MADI ports are in redundant mode MADI clock will come from the active MADI input on the redundant pair.

For stable high‑channel‑count performance on Windows, a modern high‑performance machine and appropriate system optimisations may be required. Please refer to the User Guide and FAQs.

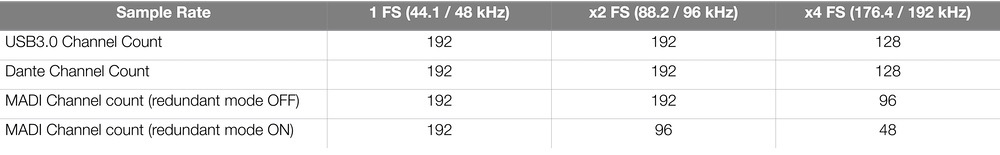

Sample rate chart
